# Theming Shiny & R Markdown with `{thematic}` & `{bslib}`

### Carson Sievert, Software Engineer @ RStudio

### Slides: https://bit.ly/nhs-r2020

<i class="fab  fa-twitter "></i> [@cpsievert](https://twitter.com/cpsievert)

<i class="fab  fa-github "></i> [@cpsievert](https://github.com/cpsievert)

<i class="fas  fa-globe "></i> [cpsievert.me](https://cpsievert.me)

---
class: large, middle

### New R 📦s for theming Shiny & R Markdown

__`{bslib}`__: simplified theming of web content via Bootstrap
  * [rstudio.github.io/bslib](https://rstudio.github.io/bslib)

__`{thematic}`__: simplified theming of R plots (`{ggplot2}`, `{lattice}`, & `{base}`)
  * [rstudio.github.io/thematic](https://rstudio.github.io/thematic)

Not yet on CRAN (give it about a month or so)

```r
remotes::install_github(c("rstudio/bslib", "rstudio/thematic"))
```

---
class: large

### Start using `{bslib}` with Shiny

```r
library(shiny)
library(bslib)

ui <- fluidPage(
* theme = bs_theme(),
  ...
)
```

* `fluidPage()`, `navbarPage()`, `bootstrapPage()`, etc. all have this `theme` argument.

* You may already be using `theme` with `{shinythemes}` or your own custom Bootstrap CSS.
  * `bs_theme()` is way more powerful!

---
class: large

### By default, upgrades app from Bootstrap 3 to 4

```r
library(shiny)
library(bslib)

ui <- fluidPage(
* theme = bs_theme(version = 4),
  ...
)
```

* Special compatibility layer helps most Shiny apps & R Markdown docs upgrade to Bootstrap 4.

* Upgrading may break some apps (try `version = 3` in that case).

---
class: large

### Continue using Bootswatch themes

```r
library(shiny)
library(bslib)

# In the past, this was shinythemes::shinythemes("darkly")
ui <- fluidPage(
* theme = bs_theme(bootswatch = "darkly"),
  ...
)
```

* Now you can use [Bootswatch](https://bootswatch.com/3/darkly) with BS4 or BS3 (just change `version`).
  * Bootswatch 4 has some new themes (e.g., [solar](https://bootswatch.com/solar) and [minty](https://bootswatch.com/minty))

---

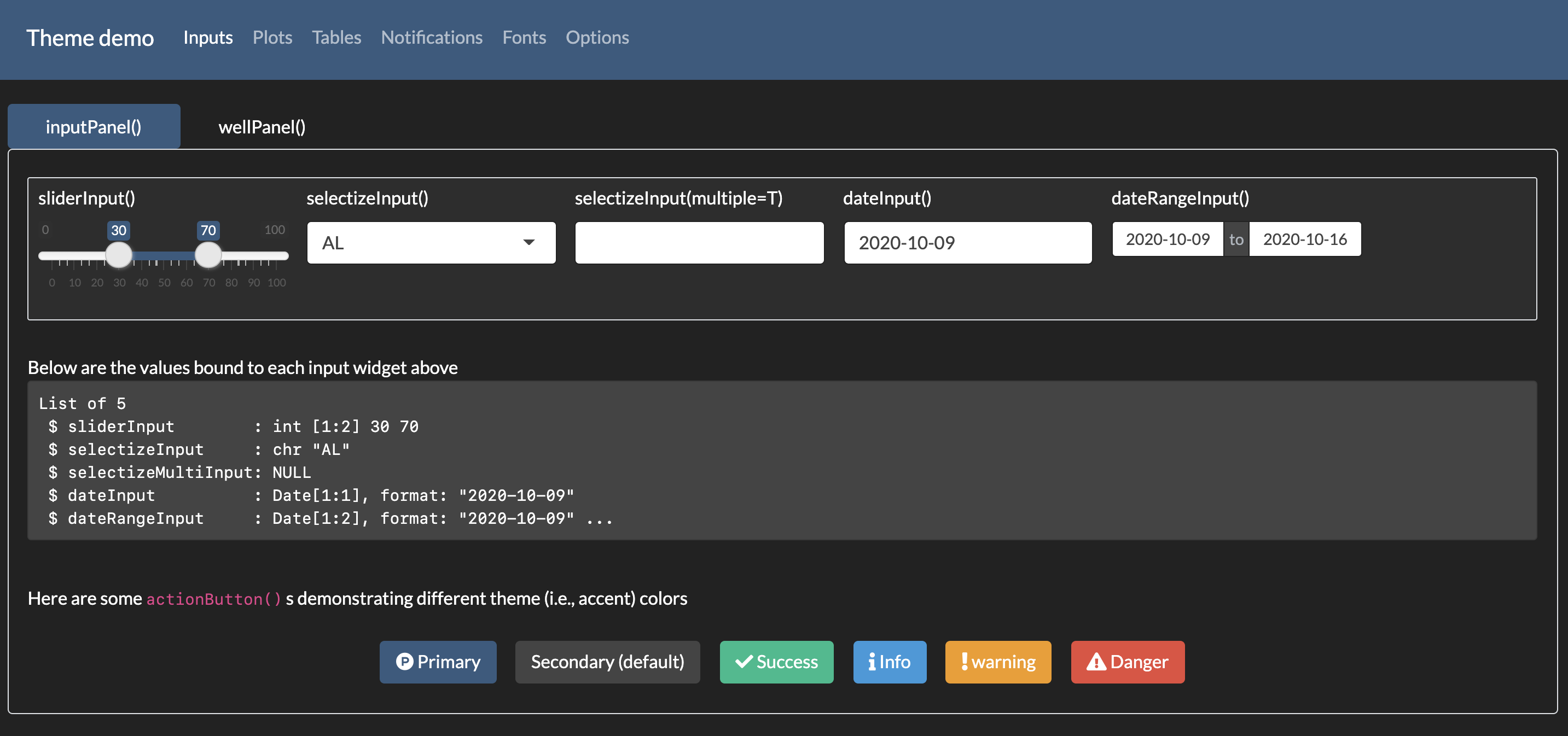

#### Preview a theme

```r
bs_theme_preview(
  bs_theme(bootswatch = "darkly")
)
```

---

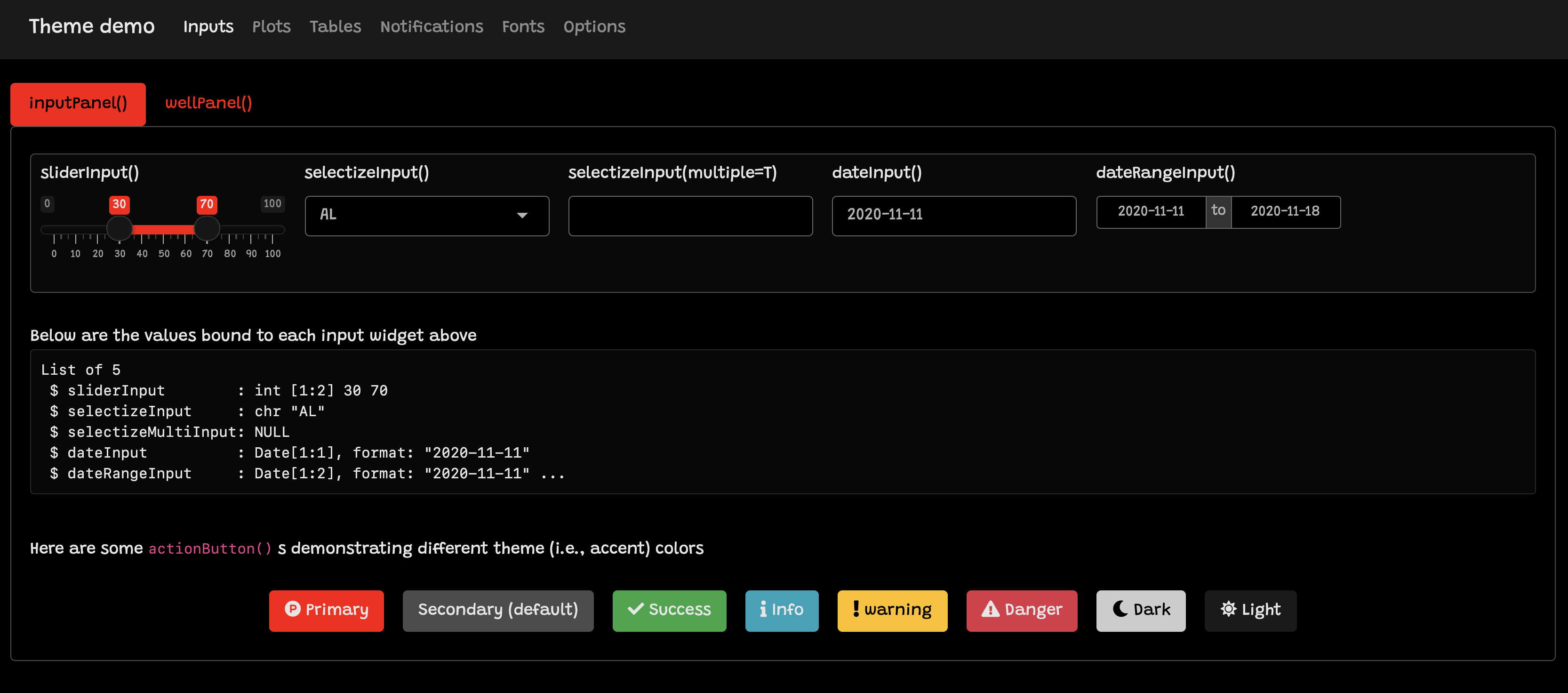

#### Create your own theme!

```r
bs_theme(
  bg = "black", fg = "white", primary = "red",
  base_font = font_google("Grandstander")
)
```

---
#### `font_google()` makes it easy to import Google Font files

```r
bs_theme(
  bg = "black", fg = "white", primary = "red",
* base_font = font_google("Grandstander")
)
```

---

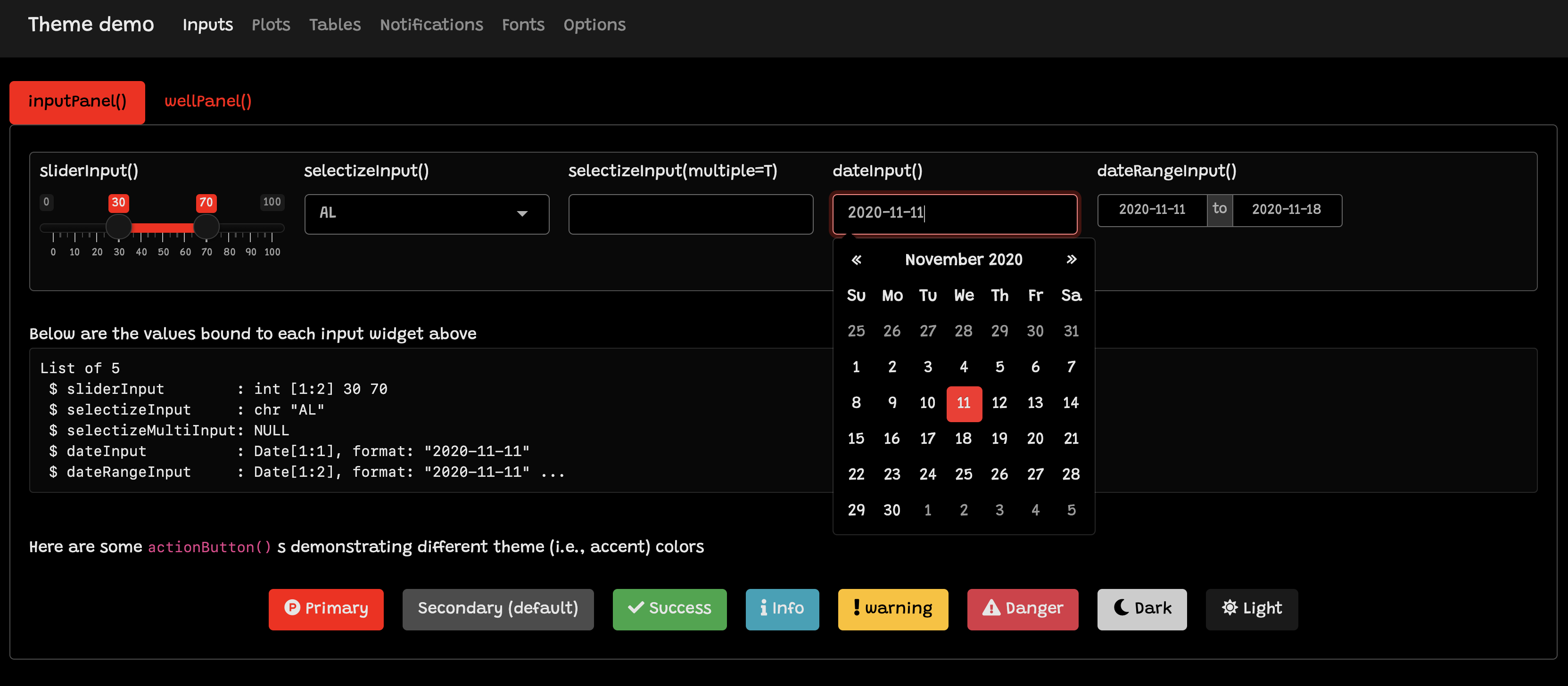

#### All Shiny UI is now (properly) themable!

```r
bs_theme(
  bg = "black", fg = "white", primary = "red",
  base_font = font_google("Grandstander")
)
```

---

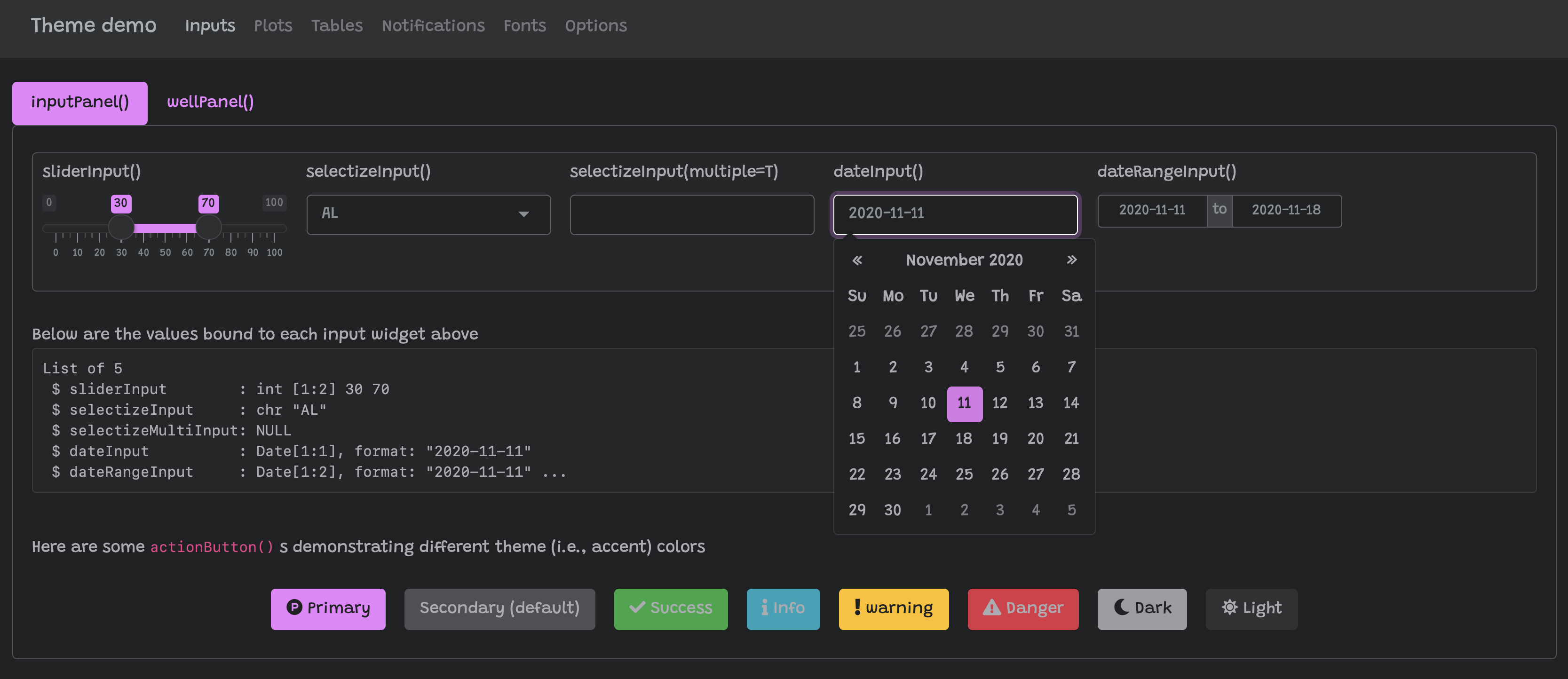

#### Use a better palette (e.g., [material dark](https://material.io/design/color/dark-theme.html))

```r
bs_theme(
  bg = "#202123", fg = "#B8BCC2", primary = "#EA80FC",
  base_font = font_google("Grandstander")
)
```

---
### Use with `rmarkdown::html_document`

```yaml
---
output:
  html_document:
    theme:
      bg: "#202123"
      fg: "#B8BCC2"
      primary: "#EA80FC"
      base_font: !expr bslib::font_google("Grandstander")
---
```

Currently requires an experimental version of R Markdown `remotes::install_github("rstudio/rmarkdown#1706")`

---
class: inverse, large

### Not everything is themable, but it's getting better!

* Currently themable (in next CRAN release):
    * The `{shiny}` package

    * `rmarkdown::html_document()` and `DT::datatable()`

    * Any "Bootstrap compatible" HTML/CSS

---
class: inverse, large

### Not everything is themable, but it's getting better!

* Currently themable (in next CRAN release):
    * The `{shiny}` package

    * `rmarkdown::html_document()` and `DT::datatable()`

    * Any "Bootstrap compatible" HTML/CSS

* Soon to be themable ([we'd love your help](https://rstudio.github.io/bslib/articles/theming.html#themable-components-1)!):
    * Other HTML-based R Markdown output formats

    * Other `{htmlwidgets}` packages (e.g., `{plotly}`, `{reactable}`, etc)

    * Other extension packages (e.g., `{shinyWidgets}`, etc)

---
class: inverse, large

### Not everything is themable, but it's getting better!

* Currently themable (in next CRAN release):
    * The `{shiny}` package

    * `rmarkdown::html_document()` and `DT::datatable()`

    * Any "Bootstrap compatible" HTML/CSS

---

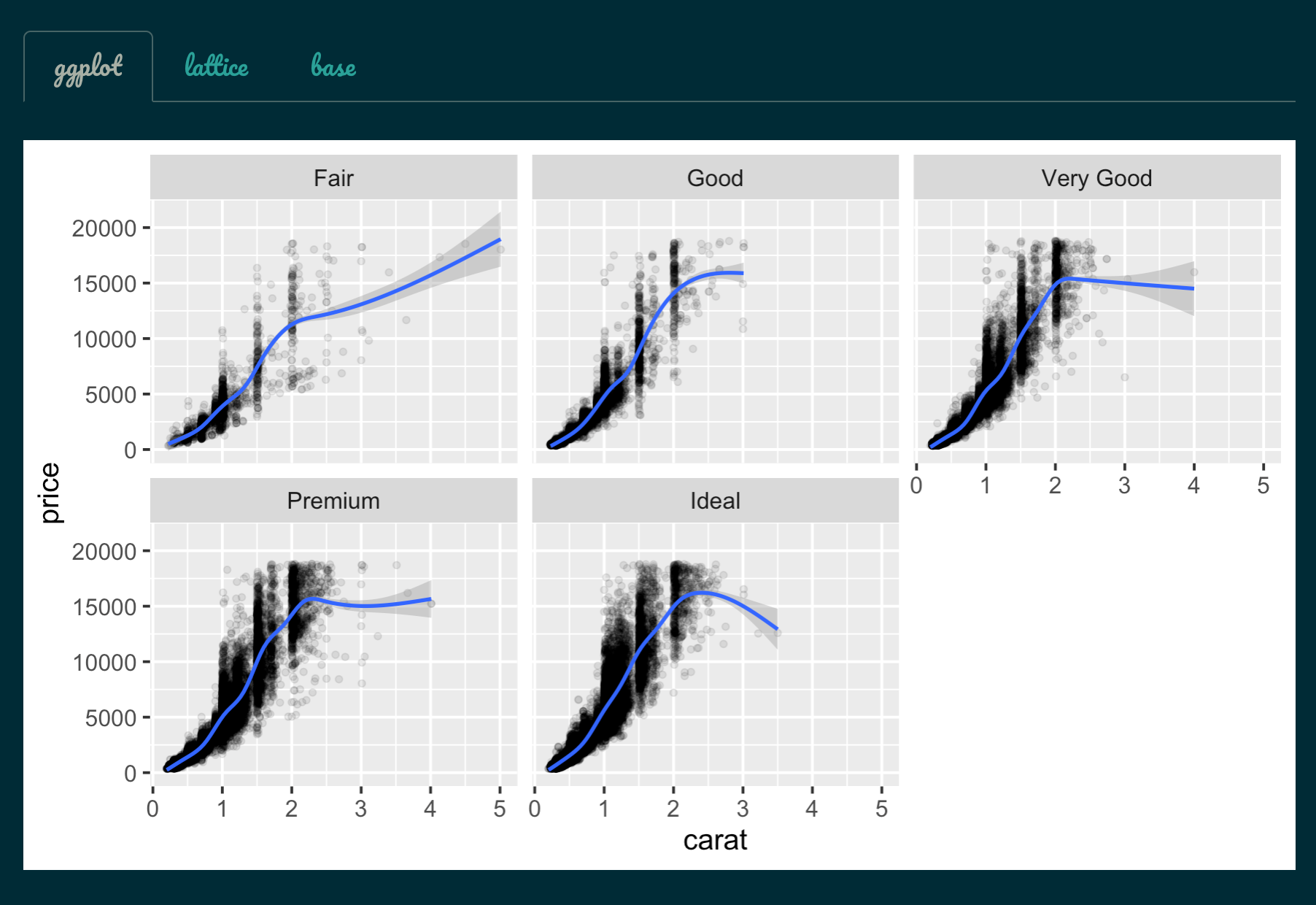

#### Plots don't reflect `bs_theme()` 😭

```r
fluidPage(
  theme = bs_theme(bg = "#002B36", fg = "#EEE8D5", primary = "#2AA198", base_fonts = font_google(("Pacifico")),
  tabsetPanel(type = "pills", tabPanel("ggplot", plotOutput("ggplot")), tabPanel("lattice", plotOutput("lattice")), tabPanel("base", plotOutput("base")))
)
```

---

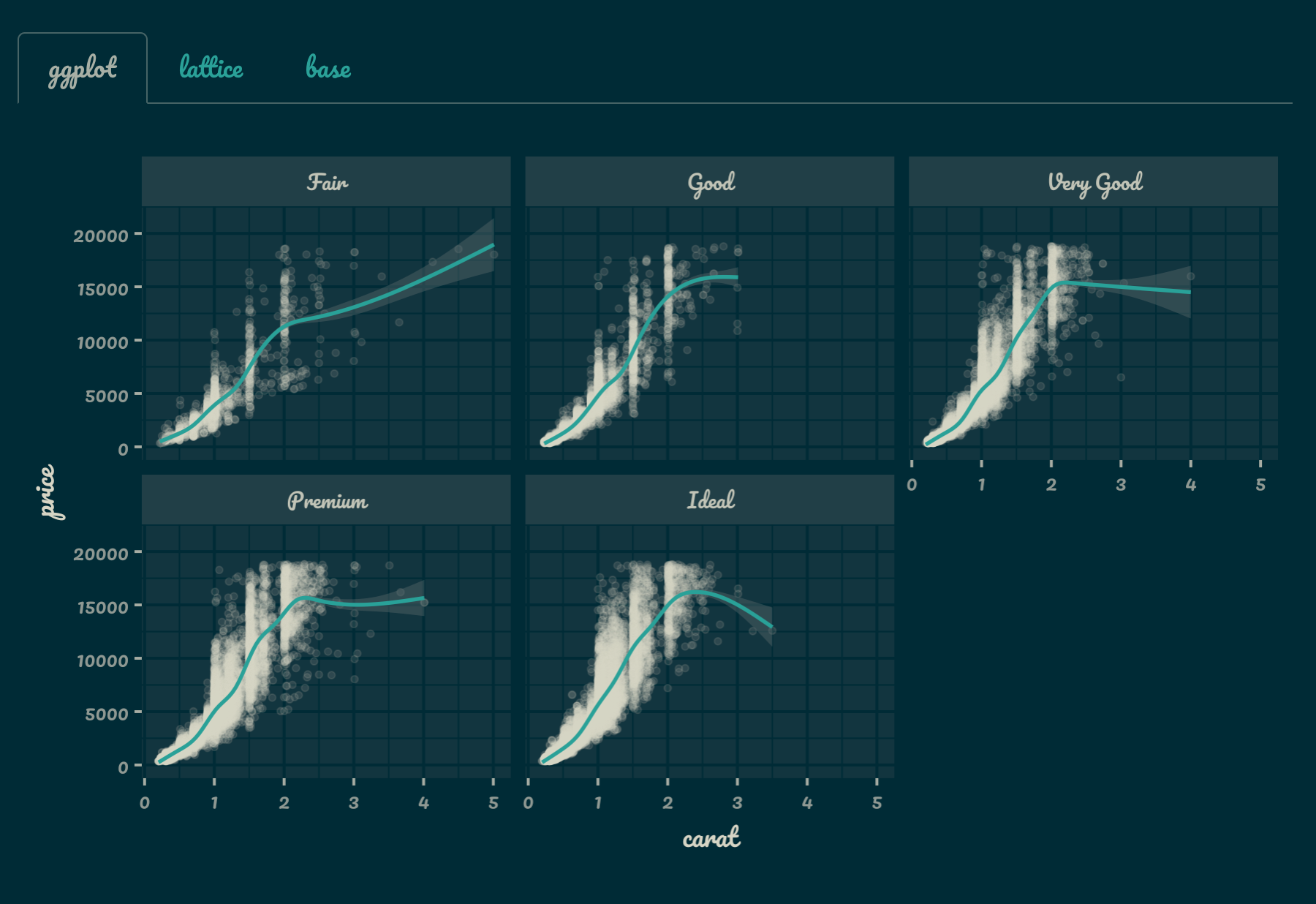

#### `{thematic}` to the rescue! 🎉

```r
*thematic::thematic_shiny()
fluidPage(
  theme = bs_theme(bg = "#002B36", fg = "#EEE8D5", primary = "#2AA198", base_fonts = font_google("Pacifico")),
  tabsetPanel(type = "pills", tabPanel("ggplot", plotOutput("ggplot")), tabPanel("lattice", plotOutput("lattice")), tabPanel("base", plotOutput("base")))
)
```

---
### The `{thematic}` package, in general

* `{thematic}` alters R plotting defaults using a few simple settings. Use `thematic_on()` to enable globally (until `thematic_off()` is called).

.pull-left[
```r
library(thematic)
library(ggplot2)
thematic_on(
  bg = "black",
  fg = "white",
  accent = "red",
  font = "Indie Flower"
)
ggplot(mtcars, aes(wt, mpg)) +
  geom_point() +
  geom_smooth()
```
]

.pull-right[
<img src="index_files/figure-html/unnamed-chunk-9-1.png" width="100%" style="display: block; margin: auto;" />
]

---

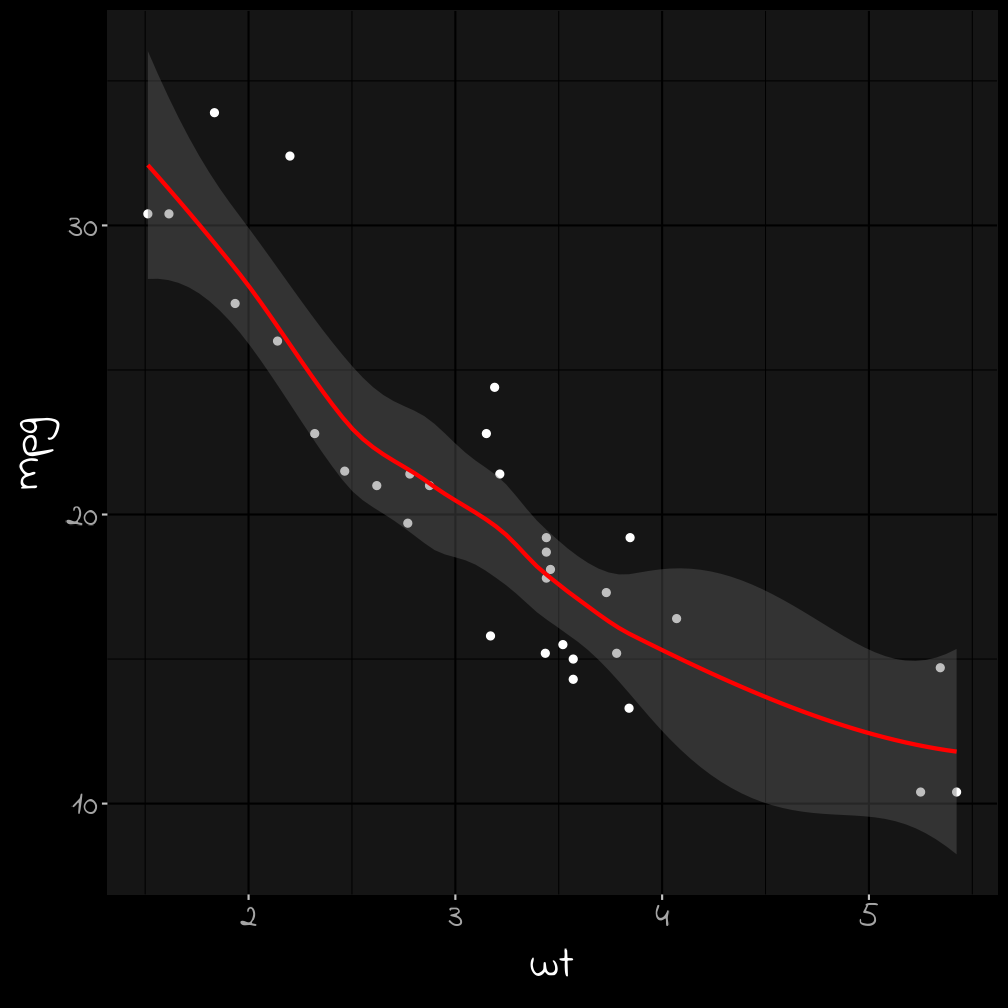

### The `{thematic}` package, in general

* `{thematic}` alters R plotting defaults using a few simple settings. Use `thematic_on()` to enable globally (until `thematic_off()` is called).

.pull-left[
```r
library(thematic)
library(ggplot2)
thematic_on(
  bg = "black",
  fg = "white",
  accent = "red",
* font = "Indie Flower"
)
ggplot(mtcars, aes(wt, mpg)) +
  geom_point() +
  geom_smooth()
```

.bg-light-red.b--red.ba.bw2.br3.shadow-5.ph4.mt5[
 Since Indie Flower is a Google Font, `{thematic}` installs it if needed!
]

]

.pull-right[
<img src="index_files/figure-html/unnamed-chunk-10-1.png" width="100%" style="display: block; margin: auto;" />
]

---
class: dark-mode

### [Auto-theming](https://rstudio.github.io/thematic/articles/auto.html) with `{thematic}`

* Main colors and fonts can be `"auto"`-detected!

.pull-left[
```r
library(thematic)
library(ggplot2)
thematic_on(
  bg = "auto",
  fg = "auto",
  accent = "auto",
  font = "auto"
)
ggplot(mtcars, aes(wt, mpg)) +
  geom_point() +
  geom_smooth()
```
]

.pull-right[
<img src="index_files/figure-html/unnamed-chunk-11-1.png" width="100%" style="display: block; margin: auto;" />
]

---
class: dark-mode

### [Auto-theming](https://rstudio.github.io/thematic/articles/auto.html) with `{thematic}`

* Main colors and fonts can be `"auto"`-detected!

.bg-light-yellow.black-70.b--yellow.ba.bw2.br3.shadow-5.ph4.mt5[
`"auto"` works best via `shiny::renderPlot()` (works with any CSS, not just `bs_theme()`)!
]
]

.pull-right[
<img src="index_files/figure-html/unnamed-chunk-12-1.png" width="100%" style="display: block; margin: auto;" />
]

---
class: dark-mode

### [Auto-theming](https://rstudio.github.io/thematic/articles/auto.html) with `{thematic}`

* Main colors and fonts can be `"auto"`-detected!

.bg-light-yellow.black-70.b--yellow.ba.bw2.br3.shadow-5.ph4.mt5[
`"auto"` can work with `{bslib}` in `rmarkdown::html_document()`
]
]

.pull-right[
<img src="index_files/figure-html/unnamed-chunk-13-1.png" width="100%" style="display: block; margin: auto;" />
]

---
class: dark-mode

### [Auto-theming](https://rstudio.github.io/thematic/articles/auto.html) with `{thematic}`

* Main colors and fonts can be `"auto"`-detected!

.bg-light-yellow.black-70.b--yellow.ba.bw2.br3.shadow-5.ph4.mt5[

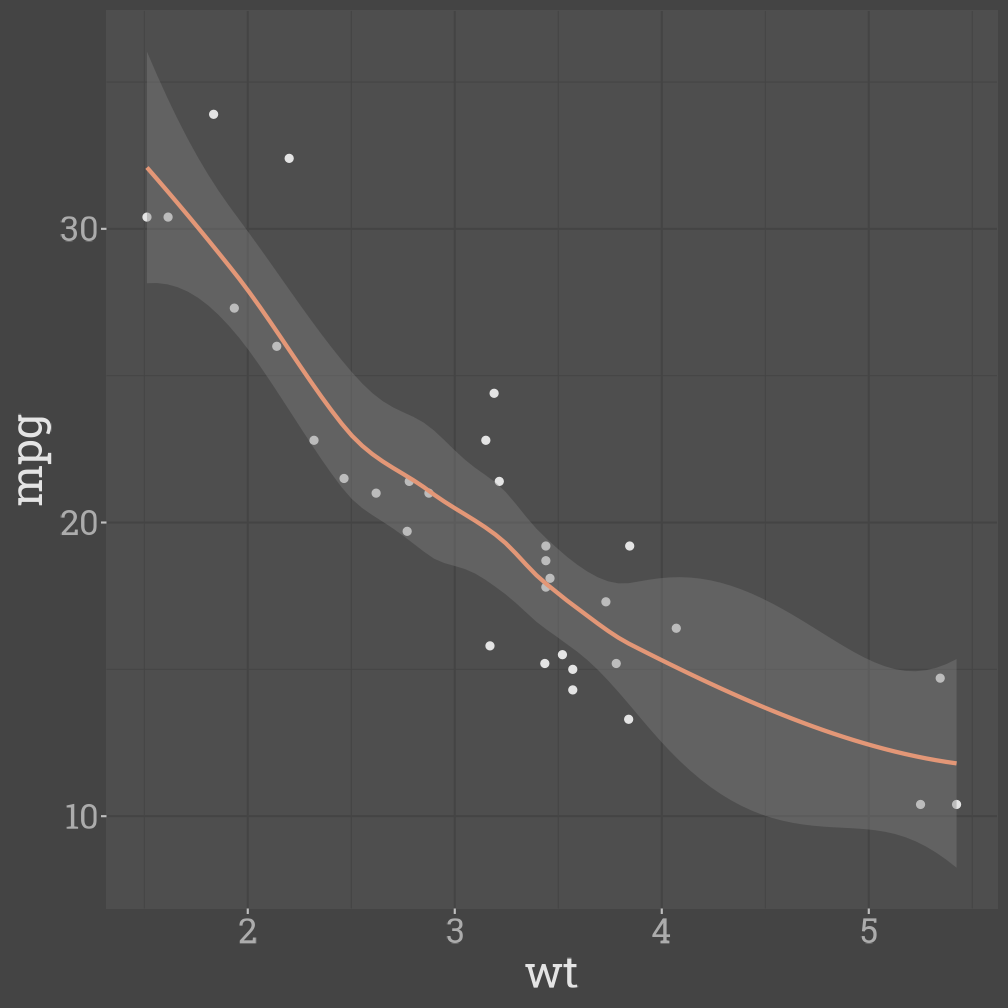

`"auto"` detects your RStudio Theme inside RStudio
]

]

.pull-right[
<img src="index_files/figure-html/unnamed-chunk-14-1.png" width="100%" style="display: block; margin: auto;" />
]

---
class: inverse, middle, center

## Demo

`bs_theme_preview()` overlays a real-time theming widget, let's see it action!

---
### Use real-time theming w/ any Shiny app

Call `bs_themer()` in the server code (also works with a `runtime: shiny` R Markdown doc)

---

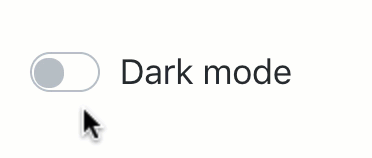

### Implement your own theming widgets w/ `setCurrentTheme()`

```r
dark <- bs_theme(bg = "black", fg = "white", primary = "purple")
light <- bs_theme()
ui <- fluidPage(
  theme = light,
  checkboxInput("dark_mode", "Dark mode", FALSE)
)
server <- function(input, output, session) {
  observe({
*   new_theme <- if (input$dark_mode) dark else light
*   session$setCurrentTheme(new_theme)
  })
}
shinyApp(ui, server)
```

---
class: large

### Summary

* Use `bslib::bs_theme()` to theme Shiny & R Markdown.
    * Upgrades to Bootstrap 4 by default (can also `version = 3`).

    * Use Bootswatch and/or design your own custom themes.

    * Use `bs_theme_preview()`/`bs_themer()` to quickly preview and update themes.

    * See [this theming article](https://rstudio.github.io/bslib/articles/theming.html) for more detailed theming tips & tricks.

* Use `{thematic}` for easier theming of R plots
    * Works with `{ggplot2}`, `plotly::ggplotly()`, `{lattice}`, and `{base}` R graphics.

    * Auto-theming (i.e., translating CSS to R defaults) works great on Shiny, but can also specify colors and fonts directly in `{thematic}`.

---
