Visualizing openFDA data with R, plotly, and dashR

class: center, middle, inverse, title-slide

# Visualizing openFDA data with R, plotly, and dashR
### Carson Sievert, PhD <br /> CEO, Sievert Consulting LLC
### Slides: <a href="https://talks.cpsievert.me" class="uri">https://talks.cpsievert.me</a> <br /> <br /> <i class="fab  fa-twitter "></i> <a href='https://twitter.com/cpsievert'><span class="citation">@cpsievert</span></a> <br /> <i class="fab  fa-github "></i> <a href='https://github.com/cpsievert'><span class="citation">@cpsievert</span></a> <br /> <i class="fas  fa-globe "></i> <a href="https://cpsievert.me/" class="uri">https://cpsievert.me/</a> <br /> <i class="fas  fa-envelope "></i> <a href="mailto:cpsievert1@gmail.com">cpsievert1@gmail.com</a> <br /> <br /> Slides released under <a href='https://github.com/cpsievert/talks/blob/gh-pages/LICENSE'>Creative Commons</a>

---

background-image: url(server-client.svg)
background-size: contain
class: middle, right

## dash: a python framework for reactive web apps

.footnote[
### dash is a [product](https://plot.ly/products/dash/) of [plotly](https://plot.ly/)
]

---
background-image: url(server-dash.svg)
background-size: contain
class: middle, right

## MIT licensed: built on flask & react
[Paid services](https://plot.ly/dash/pricing/) (e.g. private cloud, on-premise, etc)

---
background-image: url(server-dashR.svg)
background-size: contain
class: middle, right

## <font color="red">dashR:</font> an R framework for reactive web apps

.footnote[
**dashR** is not yet released...
]

---
class: middle, center, inverse

## But R already has [shiny](https://shiny.rstudio.com/)...why bother with dashR?

---
class: middle, center

# Reason 1: Agile development

## Easily switch between R/Python backend

---
class: principles

A **dashR** template:

.pull-left[
```r
library(dashR)
app = Dash$new()
app$layout_set(
*  # defines the layout/UI
*  # (a collection of "components")
)
app$callback(
*  # maps input(s) -> output
)
app$run_server()
```

Can have multiple callbacks, but only one layout
]

---
class: principles

A simple **dashR** app:

.pull-left[
```r
library(dashR)
app = Dash$new()
app$layout_set(
*  coreInput(
*    id = 'a',
*    value = 'Hello World!',
*    type = "text"
*  ),
*  htmlDiv(id = 'b')
)
app$callback(
*  function(text = input("a")) {
*    paste("You entered:", text)
*  },
*  output("b")
)
app$run_server()
```
]

.pull-right[

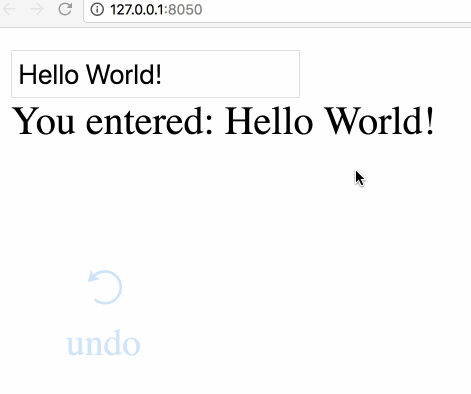

<img src="../20180515/hello-world.gif" width="100%" />
]

---
class: principles

.pull-left[
dashR version

```r
library(dashR)
app = Dash$new()
app$layout_set(
  coreInput(
    id = 'a',
    value = 'Hello World!',
    type = "text"
  ),
  htmlDiv(id = 'b')
)
app$callback(
  function(text = input("a")) {
    paste("You entered:", text)
  },
  output("b")
)
app$run_server()
```
]

.pull-right[
dash (python) version

```python
import dash
import dash_core_components as core
import dash_html_components as html
app = dash.Dash()
app.layout = html.Div([
    core.Input(
      id = 'a',
      value = 'Hello World!',
      type = "text"
    ),
    html.Div(id = 'b')
])
@app.callback(
    Output('b', 'children'),
    [Input('a', 'value')]
)
def update(text):
    return "You entered: " + text
app.run_server()
```
]

---
class: middle, center, inverse

# Reason 2: stateless web architecture

---
class: middle, principles

### When is stateless useful?

* Scaling apps to many concurrent users (or requests).

### What does stateless mean?

* A stateless server treats each request as an independent transaction that is unrelated to any previous request.

### How does dashR manage to be stateless?

* __dash__/__dashR__'s dependency graph is managed on the client via [dash-renderer](https://github.com/plotly/dash-renderer)

* When a callback needs to be executed, the client makes an HTTP request to an R server.

  * As long as callback functions do not create side-effects, requests can be managed in a stateless fashion

---
class: middle, center, inverse

# Reason 3: leverage the dash & react communities

---
class: principles

* __dash__/__dashR__ components are *transpiled* from [React](https://reactjs.org/) components

* If someone creates a component for a __dash__, it's trivial to use in __dashR__ (& vice-versa)

    * If you know JavaScript, [use our template to write your own](https://dash.plot.ly/plugins)!

    * There are 1,000s of [existing React components](https://github.com/brillout/awesome-react-components)

<br />

---
class: middle, center, inverse

# Visualizing openFDA data

## <font color="red">Example 1: Visualizing adverse drug outcomes</font>
## Example 2: Visualizing drug recall enforcements

---
class: middle, center

# First, let's survey some existing work

---
background-image: url(../20180515/medcheck.gif)
background-size: contain

#### https://medcheck.octoconsulting.com

---
class: middle, center, inverse

## What about *comparing* drug outcomes?

---
background-image: url(../20180515/openfda-dashboard.gif)
background-size: contain
class: bottom, right

#### [Work by Christopher Peters](https://github.com/statwonk/openfda-dashboard)

---
class: middle, center, inverse

## What about comparing *many* drugs?

---

## Same data, different look

---

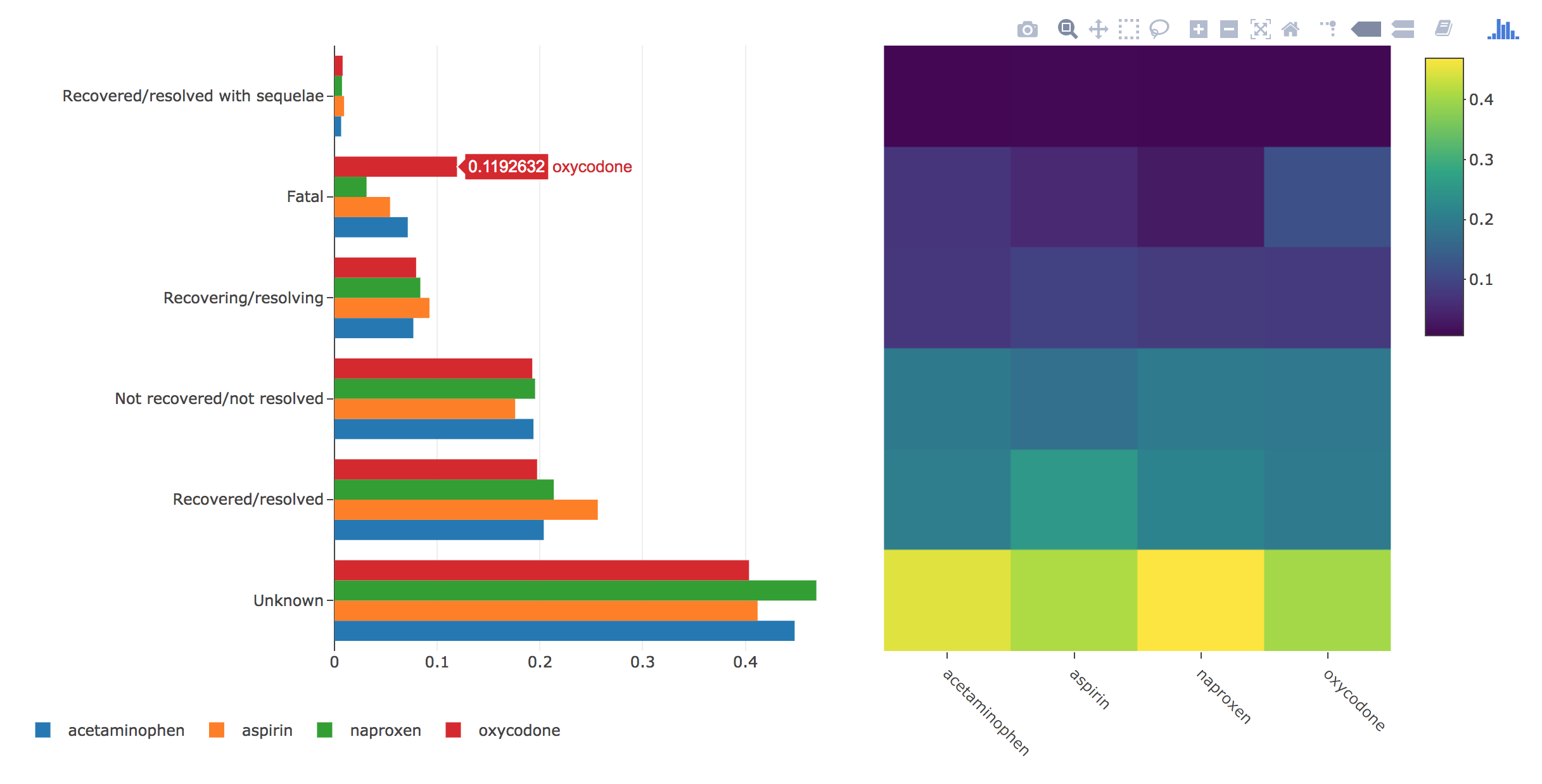

#### Heatmap of 1000 drug outcomes (made with [heatmaply](http://cran.r-project.org/package=heatmaply) and [plotly](http://cran.r-project.org/package=plotly))

<a href="../20180515/heatmap.html">Interactive</a>

---
class: middle, center, inverse

## What about comparing *millions* of drugs?

---
class: center, middle

# Overview first, then zoom and filter, then details on demand

Dr. Ben Shneiderman

.footnote[
### In other words, show summary stats first, then guided exploration to raw data.
]

---

### Using principal components and interactive graphics to identify then examine 'unusual' patterns.

---
class: middle, center, inverse

# Visualizing openFDA data

## Example 1: Visualizing adverse drug outcomes
## <font color="red">Example 2: Visualizing drug recall enforcements</font>

---

---
class: middle, center

## If we have time, here are some more dash/dashR apps.

### See more <https://dash.plot.ly/gallery>

.footnote[
#### NOTE: I did not create the following apps.
]

---
background-image: url(drug-discovery-app.gif)
background-size: contain
class: inverse

---
background-image: url(../gifs/vanguard.gif)
background-size: contain
class: inverse

---
background-image: url(../gifs/forecast.gif)
background-size: contain
class: inverse

---

## In summary

* __dash__ is a *Python* framework for creating reactive web apps.

* __dashR__ is an *R* framework for creating reactive web apps.

* **dash**/**dashR** is appealing because:

* Choose between R or Python backend

  * Stateless web architecture

  * Reusable components

* However, note that:

* No htmlwidgets support

  * No rmarkdown integration

  * Only way to cache computations is to [memoise callback functions by hand](https://dash.plot.ly/performance).

---
